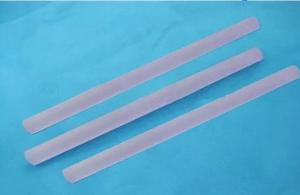

ND YAG Crystal Laser Rods D7* 145mm For Beauty Instrument

Product Categories

Wuhan Bochuangxing Laser Technology Co., Ltd.

Contact Now

Brand Name : HM

Model Number : HM-WLD

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : usd20

Payment Terms : T/T, Western Union

Supply Ability : 10000set/year

Delivery Time : 7 work days

Packaging Details : 100*80*90

Usage : Metal welding

Doping concentration Nd : 0.2 to 1.3 at%

Crystal bar size : Diameter: 2 ~ 15 mm, length: 3 ~ 200 mm

Dimensional tolerances : Diameter: + 0.00 / -0.05mm, length: ± 0.5mm

Cylindrical processing : 400 # abrasive grinding or polishing

Surface Quality : 10-5 (MIL-O-13830A)

Downside down : 0.15 ± 0.05mm

Antireflection film reflectivity : ≤ 0.25% @ 1064nm

Contact Now

Laser Rods D7* 145mm ND YAG Crystal for Beauty Instrument

Doping concentration Nd:	0.2 to 1.3 at%
Crystal orientation [111] or [100]	within 5 ° of deviation
Crystal bar size	Diameter: 2 ~ 15 mm, length: 3 ~ 200 mm (Can be customized according to customer requirements)
Dimensional tolerances	Diameter: + 0.00 / -0.05mm, length: ± 0.5mm
Cylindrical processing	400 # abrasive grinding or polishing
End parallelism	≤ 10 "
Contour of the end face and the rod	≤ 5 '
Face flatness	Λ / 10 @ 632.8 nm
Surface Quality	10-5 (MIL-O-13830A)
Downside down	0.15 ± 0.05mm
Antireflection film reflectivity	≤ 0.25% @ 1064nm
Film resistance to laser damage threshold	≥ 500MW / cm2

Product Tags:

ND YAG Crystal Laser Rods
