Equipment features:
1. Low cost: power consumption and energy saving, convenient maintenance, low later use cost, quick recovery of investment cost.
2. High precision, high speed, high cost performance, to fully meet the needs of the sheet metal processing market;
3. High-performance laser cutting head, vacuum stage sealing and anti-pollution, optimized optical fiber stability design;
4. The whole bed body is made of high-quality carbon steel plate welding, dislocation honeycomb welding structure after stress annealing for rough processing, and then vibration aging treatment natural aging can completely eliminate the welding and processing stress rigidity, high accuracy, can be stable for a long time normal use for 20 years without deformation;
5. Intelligent operation: integrated humanized design, simple operation, convenient maintenance, so that industry return to science and technology, complex into simple.
technical parameter:
| model | FL GQ-2000W |
| Processing format (length and width) | 3015 | 4020 | 6020 | 6025 |
| outline dimension | Overall appearance | 4550×3000×1800 | 5050×3600×1900 | 8200×3600×2100 | 8200×4300×2100 |
| Machine tool parameters | Cut range | 3000mm*1500mm | 4000mm*2000mm | 6000mm*2000mm | 6000mm*2500mm |
| Y axis trip | 3050mm | 4050mm | 6050mm | 6050mm |
| X axis trip | 1530mm | 2030mm | 2030mm | 2530mm |
| Z axis trip | 120mm | 120mm | 120mm | 120mm |
| Lasers parameters | laser | Rayco / IPG fiber laser (optional) |
| laser wave length | 1064nm |
| power | 2000W |
| Cutting ability | Carbon steel cutting thickness | 20mm |
| Cutting thickness of stainless steel | 8mm |
| Aluminum plate cutting thickness | 6mm |
| Copper plate cutting thickness | 6mm |
| Cut slit width | 0.10mm-0.20mm |
| accuracy | Geometric positioning accuracy | ±0.03mm/m |
| Repeat positioning accuracy | ±0.02mm/m |
| Power parameters | number of phases | three-phase |
| frequency | 50HZ |
| Power supply rated voltage | 380V±5% |
| Total power supply protection level | level Four |
| coolant passage | cooling-down method | hydrocooling |
|
|

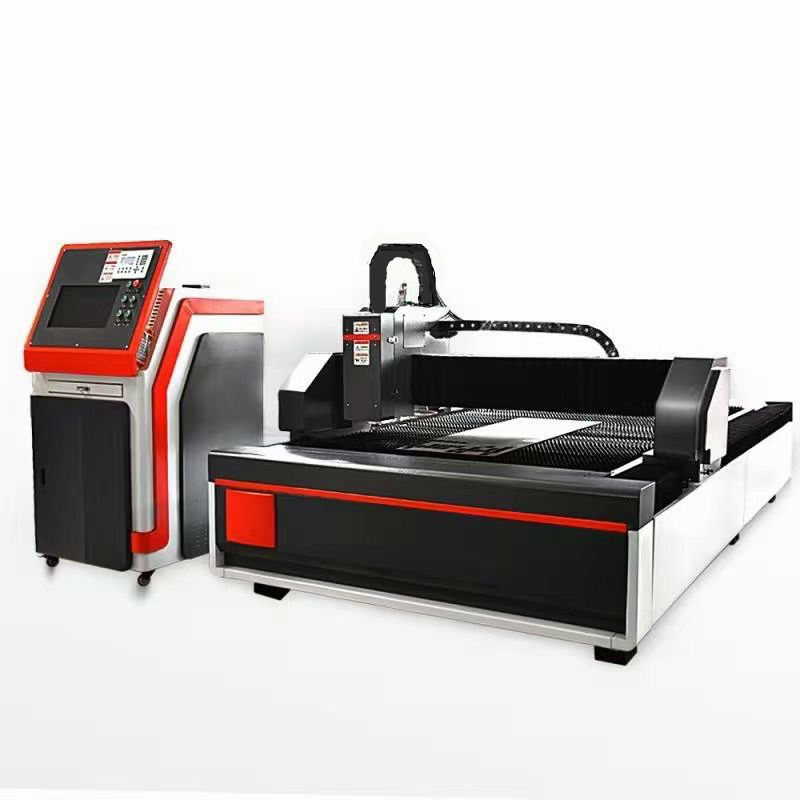

1500w Stainless Steel Metal Kitchenware Fiber Laser Cutting Machine Images
|
